Is This Lift Right For You?
✅ Home garages with 12'4" ceilings or higher
✅ Professional repair shops
✅ Passenger cars, SUVs, Jeeps, and light-duty trucks
✅ Customers wanting an ALI Certified lift
✅ Buyers seeking a premium direct-drive design
✅ Shops needing both symmetric and asymmetric lifting capability
✅ Users wanting unobstructed floor space between columns
❌ Not recommended for ceilings under 12'4"
❌ Not designed for medium or heavy-duty commercial trucks
❌ Verify concrete thickness and electrical requirements before installation

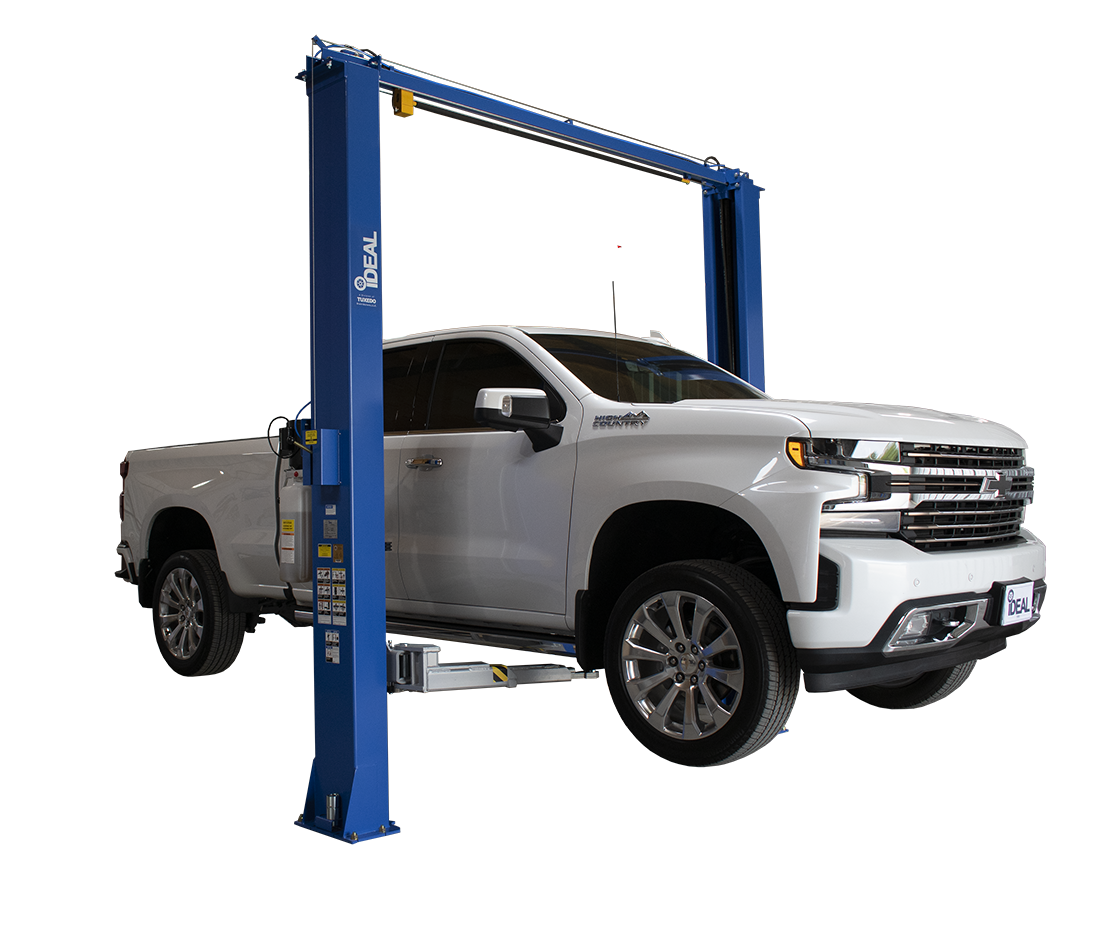

The TP10KAC-DX is a premium 10,000 lb clear-floor two-post lift featuring a bi-symmetric arm design, direct-drive hydraulic cylinders, and ALI/ETL certification. Its flexible arm configuration allows both symmetric and asymmetric vehicle positioning, making it an excellent choice for servicing passenger cars, SUVs, and light trucks.
| Model Number |
TP10KAC-DX (ALI/ETL Certified) |
| CAPACITY |
10,000 LBS |
| LIFT CONFIGURATION |
OVERHEAD |
| CEILING HEIGHT MINIMUM |
12' 4" |

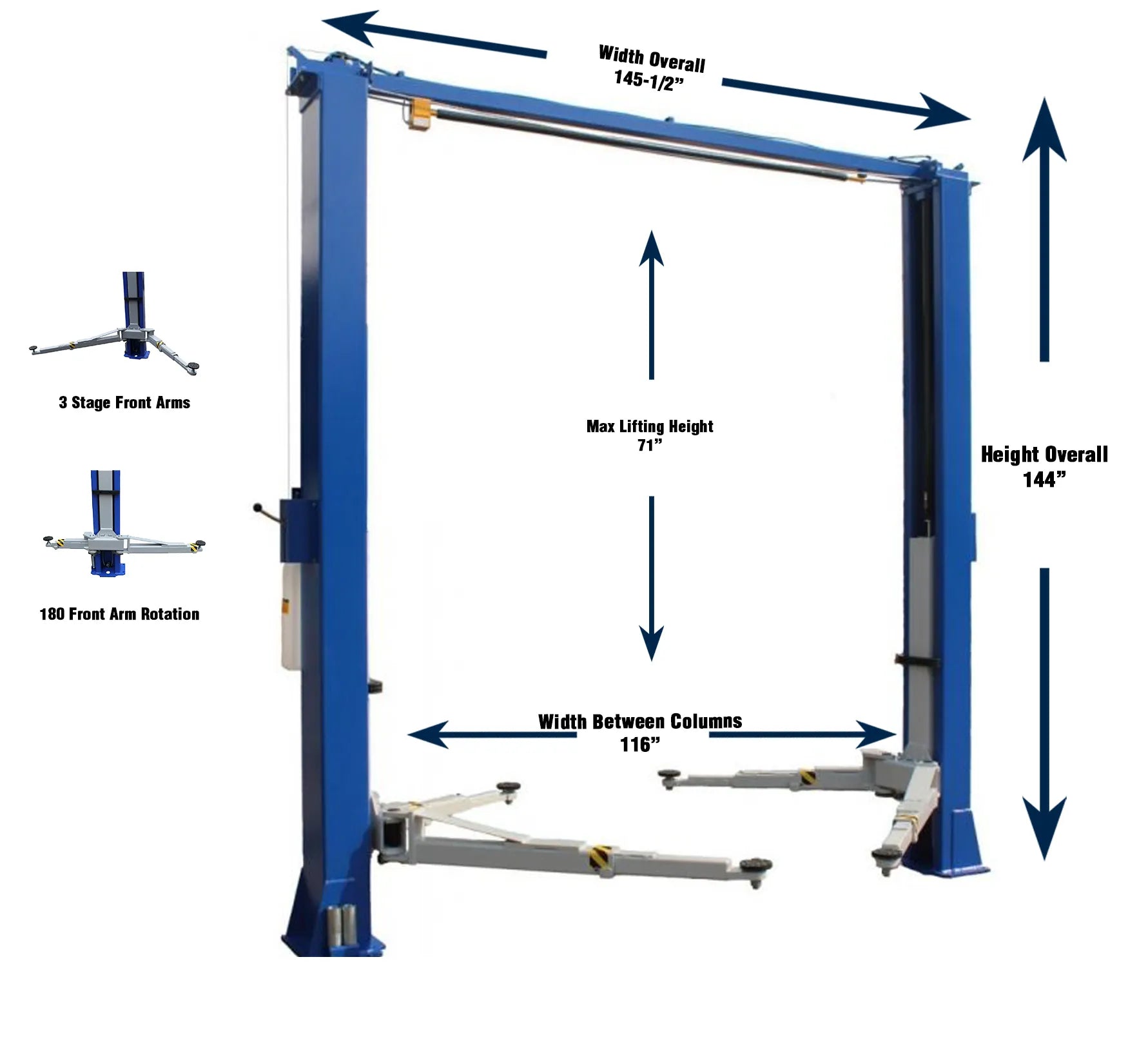

| HEIGHT OVERALL |
144" (12') |
| LIFTING HEIGHT |
71" (5'11") |
| LIFTING HEIGHT (W/ADAPTERS) |
74-7/8" (6'2-7/8") |
| LOW PAD HEIGHT |
4" |
| WIDTH OVERALL |
145-1/2" (12' 1-1/2") |
| WIDTH BETWEEN COLUMNS |
116" (9'8") |
| TIRE/DRIVE-THRU WIDTH |
104" (8'8") |
| ARM ATRICULATION |
BI-SYMMETRIC |
| FRONT ARM REACH (MIN/MAX) |
23" - 45" |
| REAR ARM REACH (MIN/MAX) |
41" - 59" |
| ADAPTERS (2 SETS OF 4 INCLUDED) |
2.6" AND 5" |
| MAX. LOAD PER ARM (LBS) |
2500 |
| SAFETY LOCKING SYSTEM |
SINGLE POINT |
| POWER PACK (HP-V-A) |
2HP/1PH-220V-20A |
| CABLE DIAMETER |
DIRECT DRIVE |
| LIFTING SPEED (SECONDS) |
50 |
| SHIPPING WEIGHT (LBS) |
1705 |
| ------ |
------ |
| CONCRETE SPEC |
3000 PSI / 4.25" THICKNESS |
| HYDRAULIC OIL |
AW32 |
TP10KAC-DX Flier: Click Here
Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.
Shipping / Receiving: Offloading of the delivery truck is the responsibility of the customer. A forklift or similar vehicle is required to unload the lift. Residential delivery is an additional $150 charge by the freight carrier.
