Tuxedo

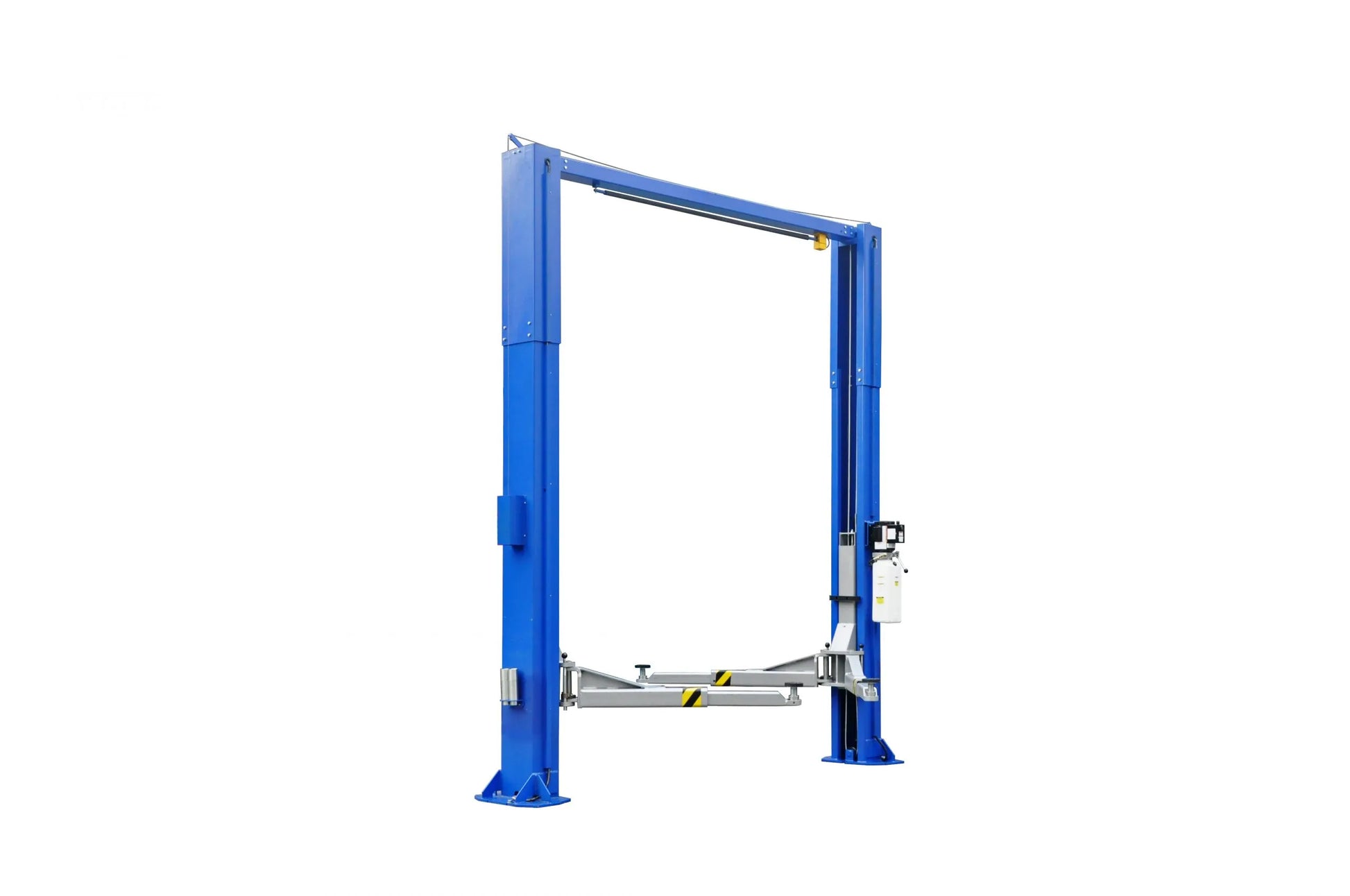

Two-Post Direct Drive Car Lift - ALI/ETL Certified (TP12KSC-DX)

Two-Post Direct Drive Car Lift - ALI/ETL Certified (TP12KSC-DX)

$6,900.00 USD
$6,900.00 USD
Sale Sold out

Two-post 12K Direct-drive ALI/ETL certified lift

Model Number TP12KSC-DX (ALI/ETL Certified)
CAPACITY 12,000 LBS
LIFT CONFIGURATION OVERHEAD
CEILING HEIGHT MINIMUM 14'3"
HEIGHT OVERALL 168-1/2" (14'-1/2")
LIFTING HEIGHT 75" (6'3")
LIFTING HEIGHT (W/ADAPTERS) 79 5/8" (6'7.5")
LOW PAD HEIGHT 4-7/8"
WIDTH OVERALL 151-5/16" (12'-7-5/16")
WIDTH BETWEEN COLUMNS 122" (10'2")
TIRE/DRIVE-THRU WIDTH 109" (9'1")
ARM ATRICULATION SYMMETRIC
FRONT ARM REACH (MIN/MAX) 37.5" - 57"
REAR ARM REACH (MIN/MAX) 37.5" - 57"
ADAPTERS (2 SETS OF 4 INCLUDED)  2.6" AND 5"
MAX. LOAD PER ARM (LBS) 3000
SAFETY LOCKING SYSTEM SINGLE POINT
POWER PACK (HP-V-A) 2HP/1PH-220V-20A
CABLE DIAMETER DIRECT DRIVE
LIFTING SPEED (SECONDS) 50
SHIPPING WEIGHT (LBS) 2295
------ ------
CONCRETE SPEC  3000 PSI   /   4.25" THICKNESS
HYDRAULIC OIL  AW32

TP12KC-DX Lift Flier: Click Here

TP12KC-DX Lift Manual: Click Here



Local Pick-up (Reidsville, NC):  12' - 16' (Open) trailer required for pick-up.  Enclosed trailers will not be loaded due to risk of damage to loading ramp.

Shipping / Receiving:  Offloading of the delivery truck is the responsibility of the customer.  A forklift or similar vehicle is required to unload the lift.  Residential delivery is an additional $150 charge by the freight carrier.
