Tuxedo

12K Two-Post Lift - Direct Drive (TP12KC-D)

12K Two-Post Lift - Direct Drive (TP12KC-D)

$4,920.00 USD
$4,920.00 USD
Sale Sold out

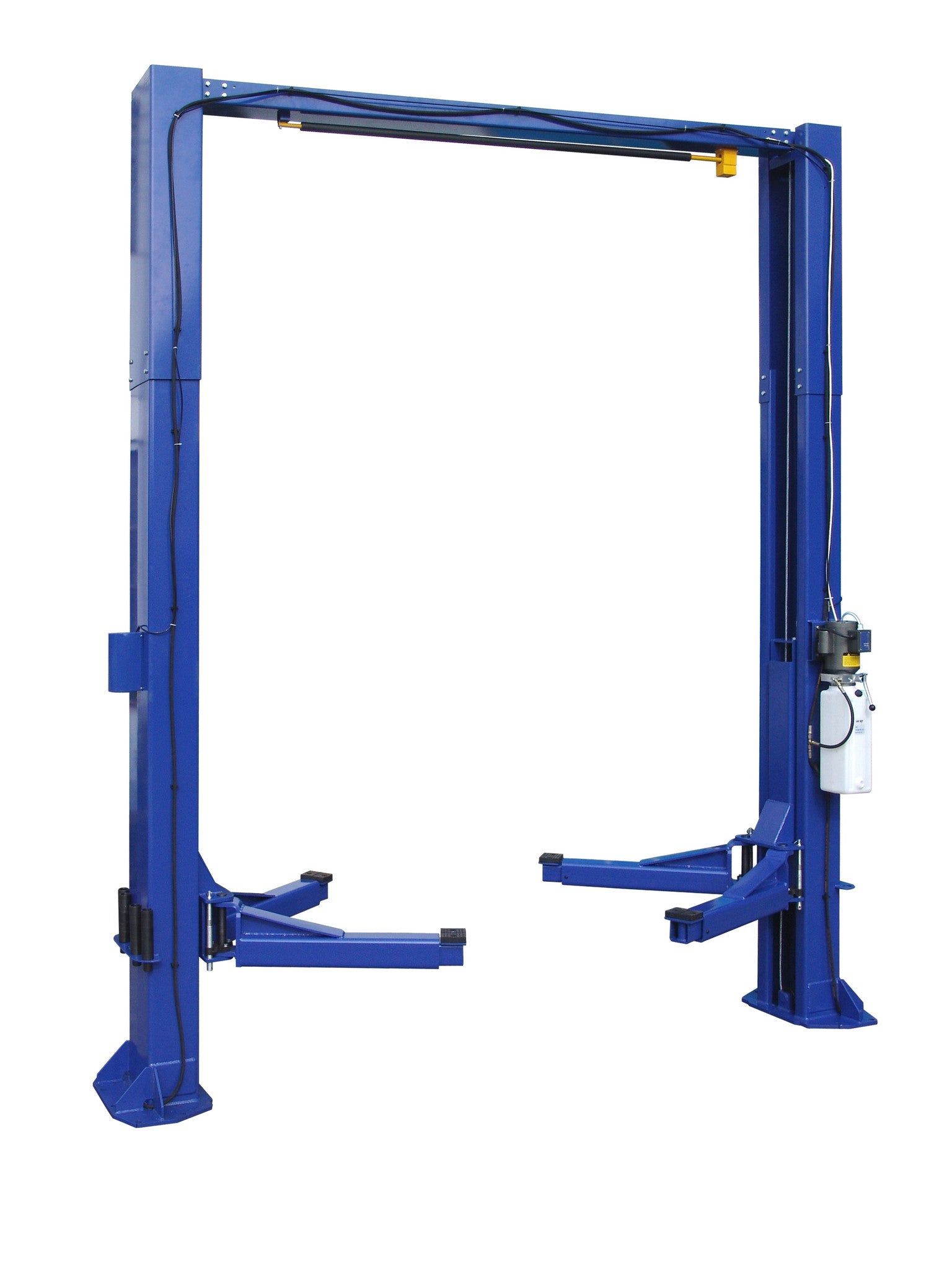

Two-Post 12K symmetric automotive lift with direct push drive.
LIFT MODEL  TP12KC-D
CAPACITY 12,000 LBS
LIFT CONFIGURATION OVERHEAD
CEILING HEIGHT MINIMUM 14'
HEIGHT OVERALL 165" (13'9")
LIFTING HEIGHT 72" (6')
LIFTING HEIGHT (W/ADAPTERS) 79 5/8" (6'7.5")
LOW PAD HEIGHT 5.5"
WIDTH OVERALL 151.125" (12'6")
WIDTH BETWEEN COLUMNS 122" (10'2")
TIRE/DRIVE-THRU WIDTH 109" (9'1")
ARM ATRICULATION SYMMETRIC
FRONT ARM REACH (MIN/MAX) 37.5" - 57"
REAR ARM REACH (MIN/MAX) 37.5" - 57"
ADAPTERS (2 SETS OF 4 INCLUDED)  3" AND 5"
MAX. LOAD PER ARM (LBS) 3000
SAFETY LOCKING SYSTEM SINGLE POINT
POWER PACK (HP-V-A) 2HP/1PH-220V-20A
CABLE DIAMETER 3/8"
LIFTING SPEED (SECONDS) 50
SHIPPING WEIGHT (LBS) 2235
HYDRAULIC OIL  Non-Detergent / Non-Foaming Hydraulic Oil -- SAE10 / AW32
CONCRETE SPEC (PSI) 3000 Psi
CONCRETE SPEC (Thickness) 4.25"
CONCRETE SPEC (Anchor) 3/4" X 5-1/2" ANCHORS
CONCRETE SPEC (Anchor Depth) 3.25" MIN. ANCHOR EMBEDMENT
CONCRETE SPEC (Edge) 7" MIN DISTANCE FROM ANY EDGE

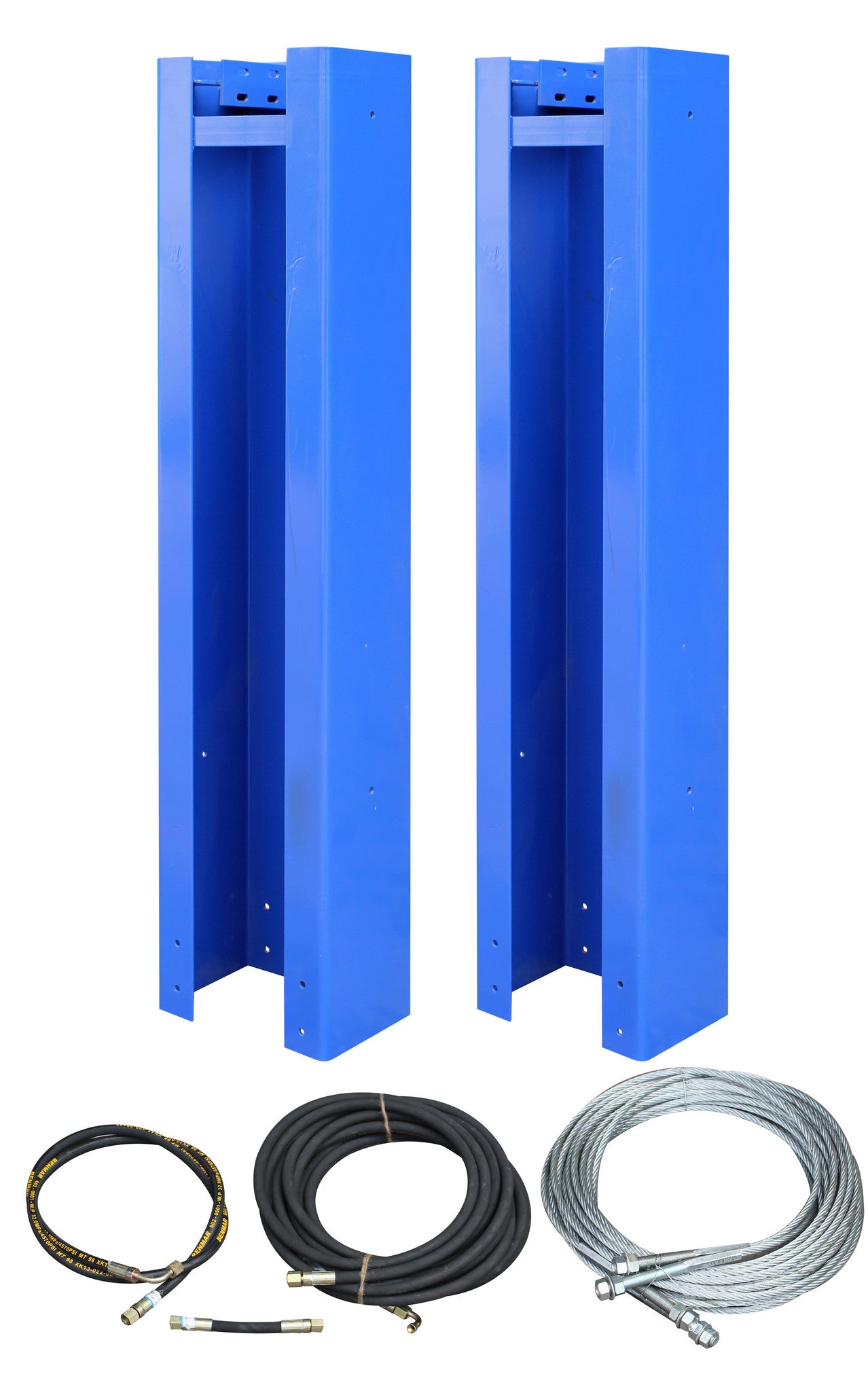

TP12KC-D-1FTEXT:  One Foot Long Extension Kit for TP12KC-D  $499
TP12KC-D-2FTEXT:  Two Foot Long Extension Kit for TP12KC-D  $550


 TP12KC-D Flier: Click Here

Local Pick-up (Reidsville, NC):  12' - 16' (Open) trailer required for pick-up.  Enclosed trailers will not be loaded due to risk of damage to loading ramp.

Shipping / Receiving:  Offloading of the delivery truck is the responsibility of the customer.  A forklift or similar vehicle is required to unload the lift.  Residential delivery is an additional $150 charge by the freight carrier.
