12K Two-Post Floor Plate Lift (TP-12KFX)

12K Two-Post Floor Plate Lift (TP-12KFX)

$6,500.00 USD
$6,500.00 USD
Sale Sold out

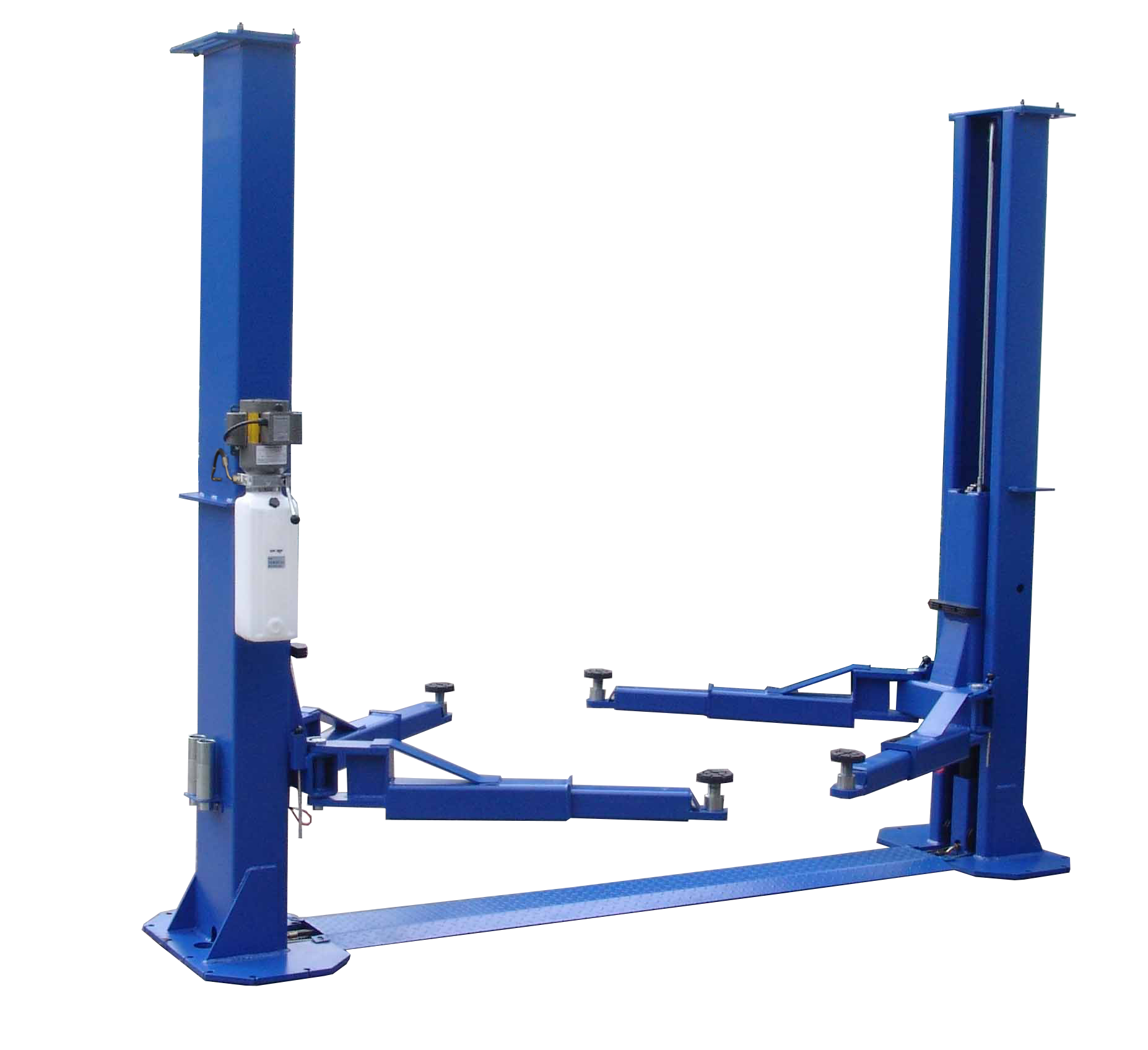

Two post floor plate lift with 12,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate for extra stability.

LIFT MODEL  TP12KFX
CAPACITY 12,000 LBS
LIFT CONFIGURATION FLOOR PLATE
CEILING HEIGHT MINIMUM 10'6"
HEIGHT OVERALL 121-1/2" (9'11-1/2")
LIFTING HEIGHT 76.5" (6'4-1/2")
LIFTING HEIGHT (W/ADAPTERS) 80" (6'8")
LOW PAD HEIGHT 9"
WIDTH OVERALL 147-7/8" (12'3-7/8")
WIDTH BETWEEN COLUMNS 120" (10')
TIRE/DRIVE-THRU WIDTH 107" (8'11")
ARM ATRICULATION SYMMETRIC
FRONT ARM REACH (MIN/MAX) 37" - 52"
REAR ARM REACH (MIN/MAX) 37" - 52"

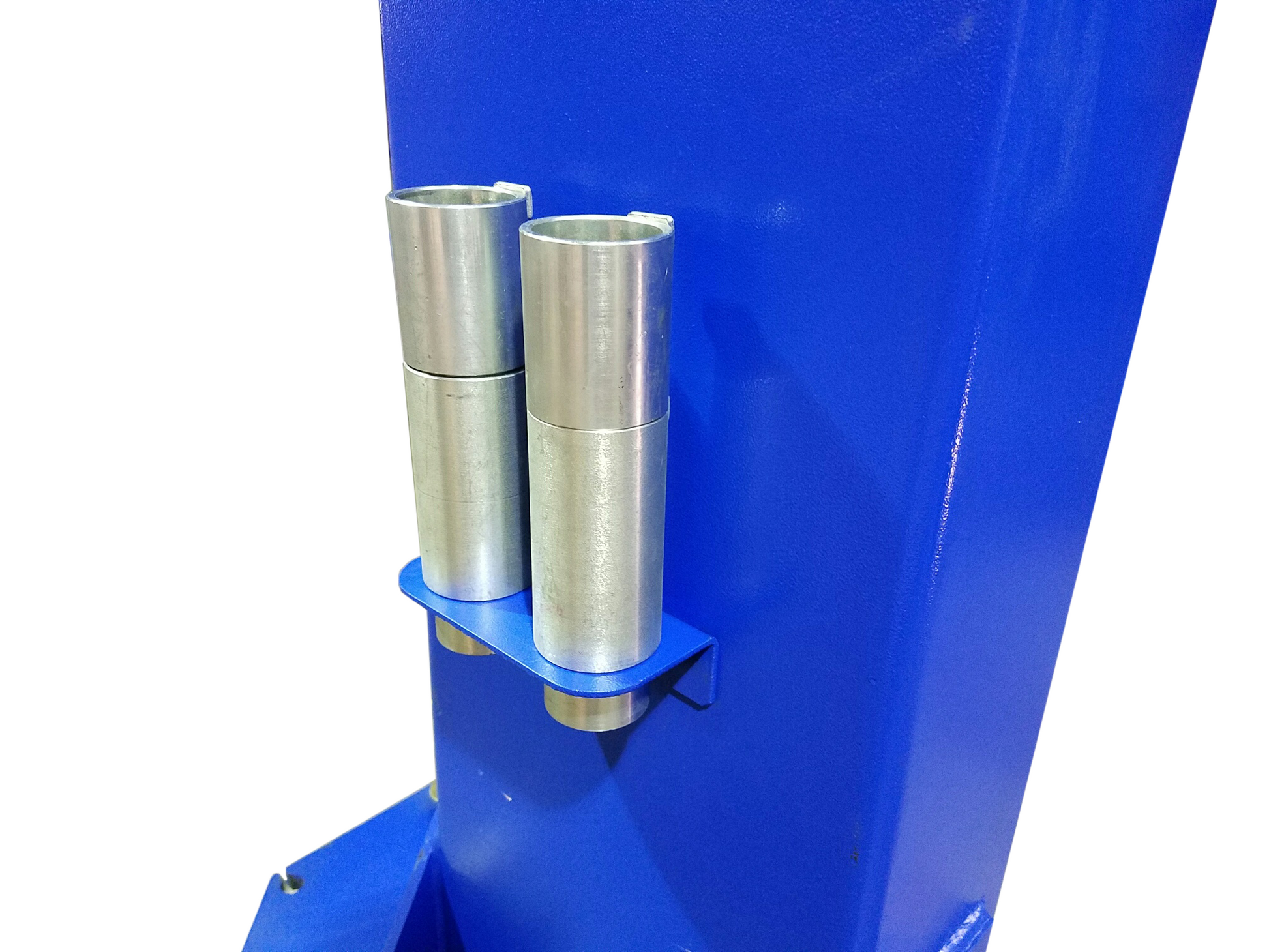

ADAPTERS (2 SETS OF 4 INCLUDED)  3" AND 5"
MAX. LOAD PER ARM (LBS) 3000
SAFETY LOCKING SYSTEM DUAL POINT
POWER PACK (HP-V-A) 2HP/1PH-220V-20A
CABLE DIAMETER 3/8"
LIFTING SPEED (SECONDS) 50
SHIPPING WEIGHT (LBS) 2460
HYDRAULIC OIL  Non-Detergent / Non-Foaming Hydraulic Oil -- SAE10 / AW32
CONCRETE SPEC (PSI) 3000 Psi
CONCRETE SPEC (Thickness) 4.25"
CONCRETE SPEC (Anchor) 3/4" X 5-1/2" ANCHORS
CONCRETE SPEC (Anchor Depth) 3.25" MIN. ANCHOR EMBEDMENT
CONCRETE SPEC (Edge) 7" MIN DISTANCE FROM ANY EDGE

TP12K-FX Manual: Click Here

Local Pick-up (Reidsville, NC):  12' - 16' (Open) trailer required for pick-up.  Enclosed trailers will not be loaded due to risk of damage to loading ramp.

Shipping / Receiving:  Offloading of the delivery truck is the responsibility of the customer.  A forklift or similar vehicle is required to unload the lift.  Residential delivery is an additional $150 charge by the freight carrier.
