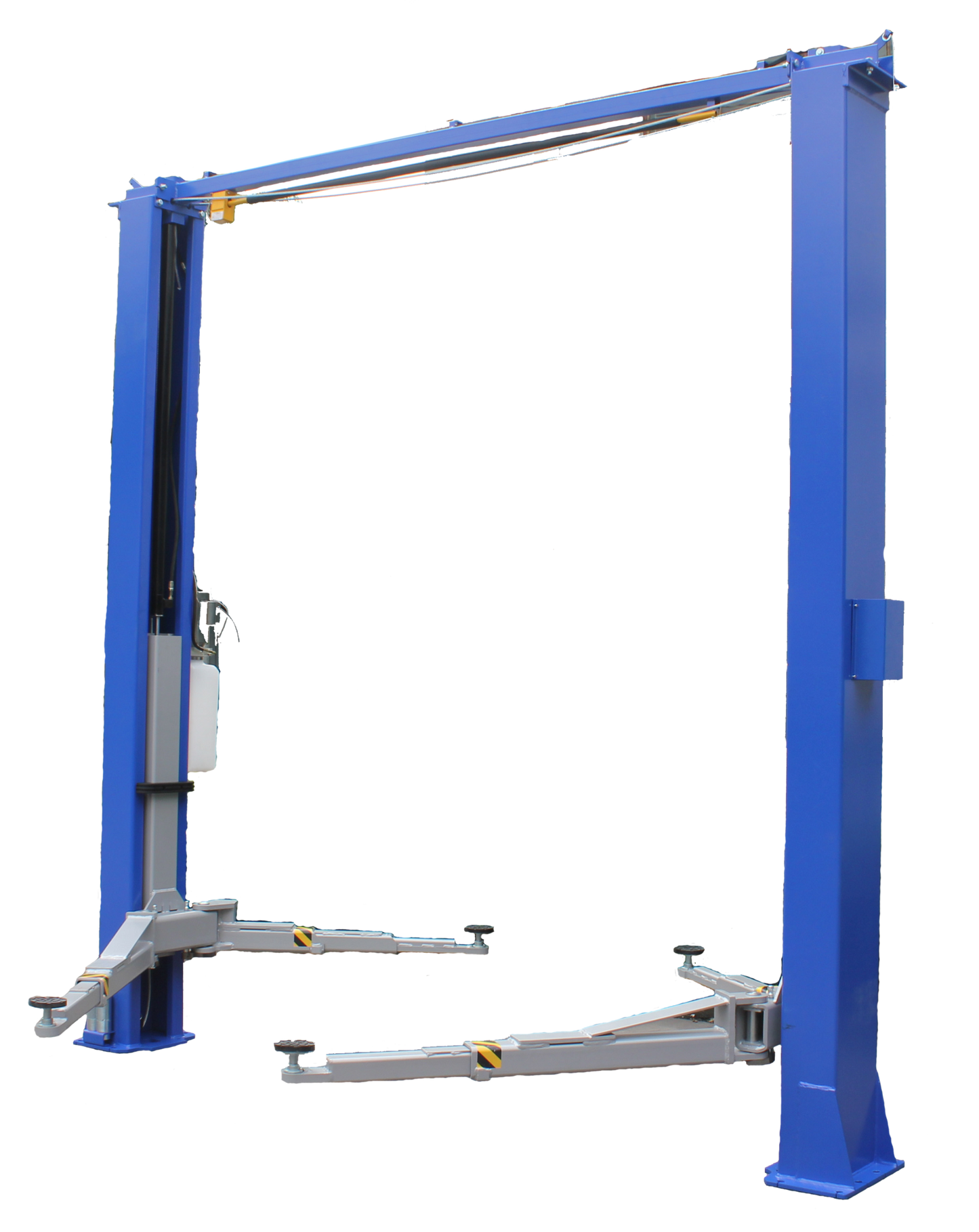

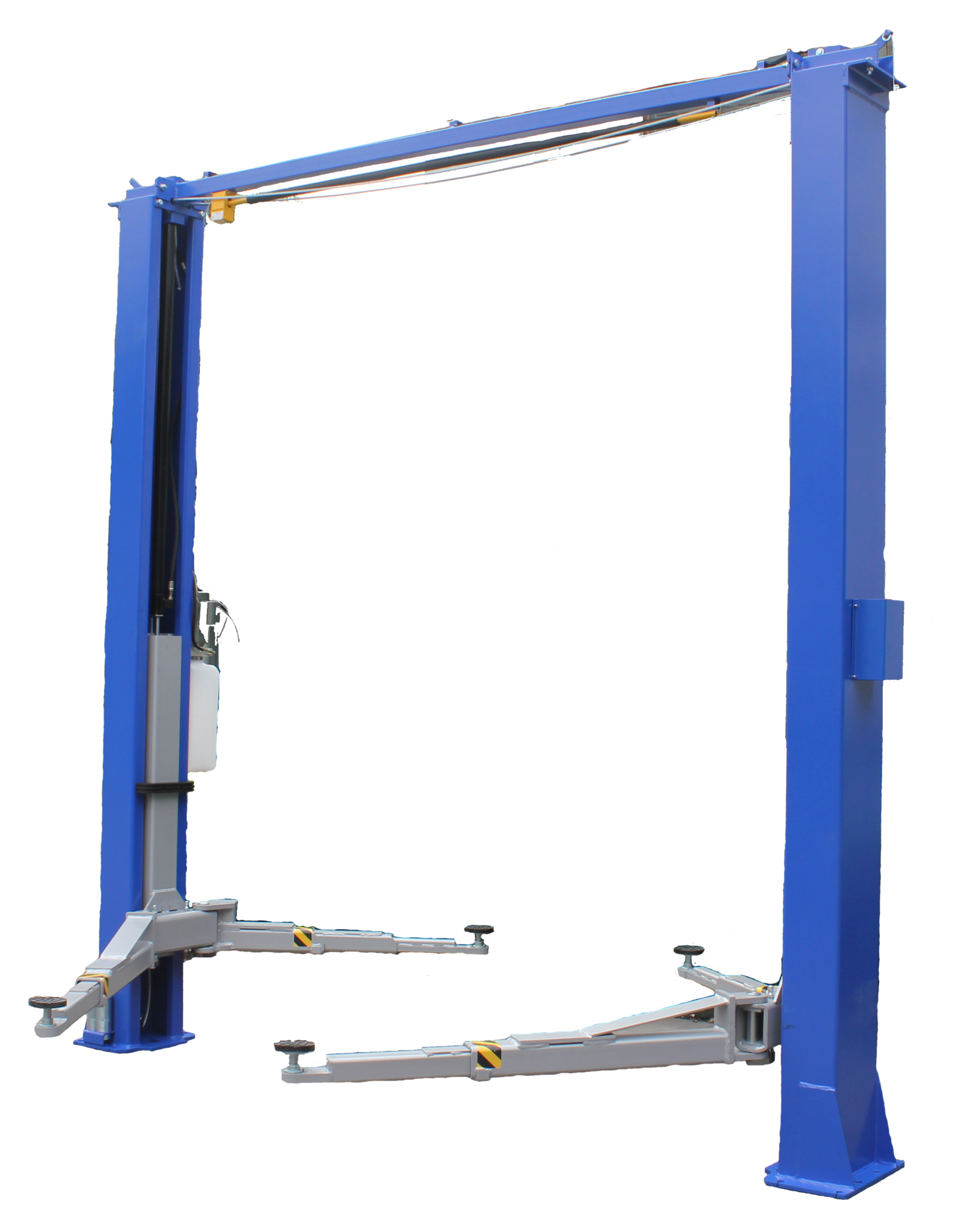

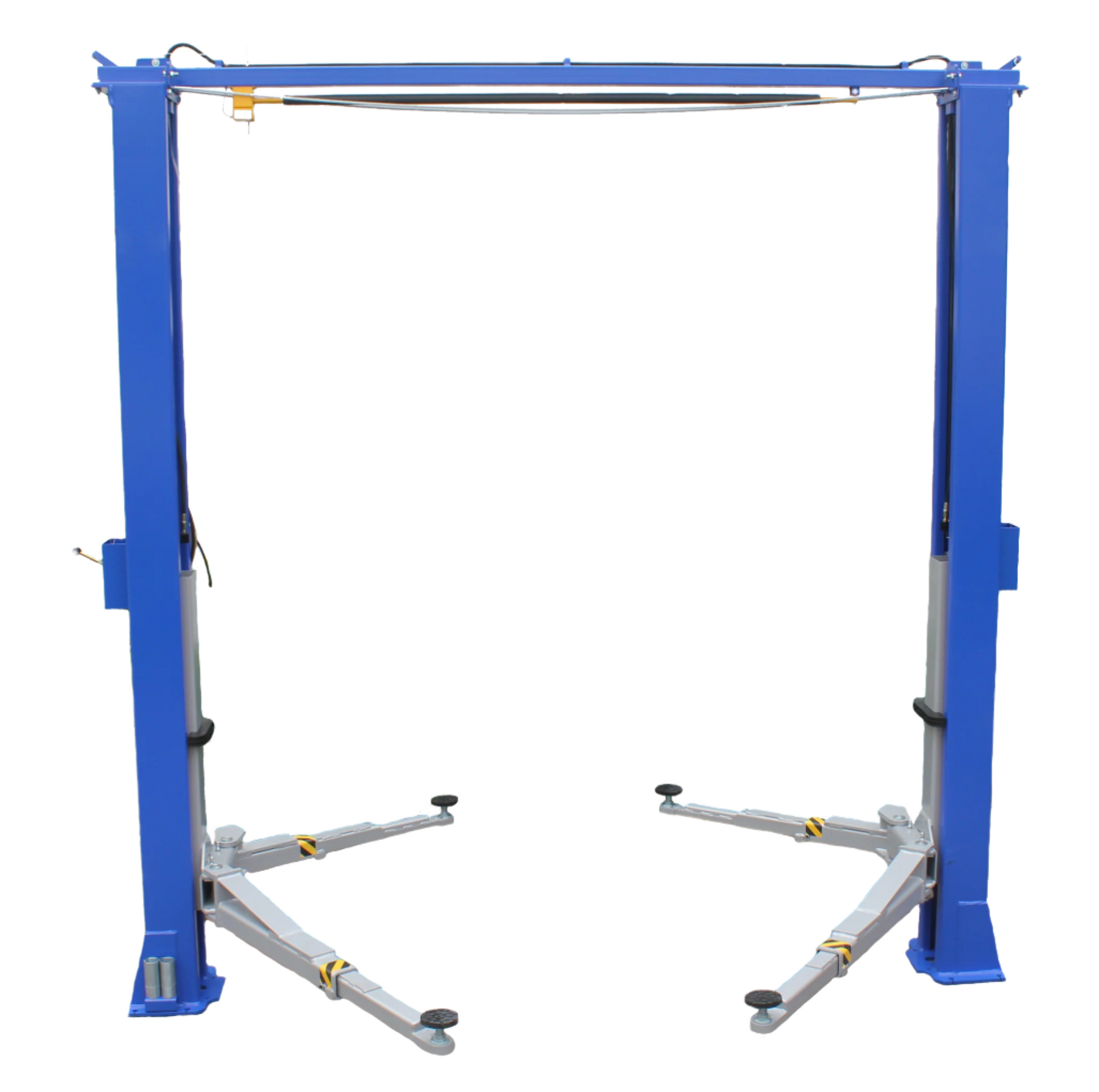

11K Two-Post Clear Floor Auto Lift (TP11KC-DX)

11K Two-Post Clear Floor Auto Lift (TP11KC-DX)

$3,990.00 USD
$3,990.00 USD
Sale Sold out

FREE PICKUP (Reidsville, NC) --- NO WAREHOUSE FEES ADDED

TP11KC-DX ATTRIBUTES / SPECIFICATIONS
CAPACITY 11,000 LBS
LIFT CONFIGURATION OVERHEAD
CEILING HEIGHT MINIMUM 12' 4"
HEIGHT OVERALL 142.7" (11'10")
LIFTING HEIGHT 71" (5'11")
LIFTING HEIGHT (W/ADAPTERS) 76-1/2" (6'4-1/2")
LOW PAD HEIGHT 4"
WIDTH OVERALL 145-1/2" (12' 1-1/2")
WIDTH BETWEEN COLUMNS 116" (9'8")
TIRE/DRIVE-THRU WIDTH 104" (8'8")
ARM ATRICULATION SYMMETRIC & ASYMMETRIC

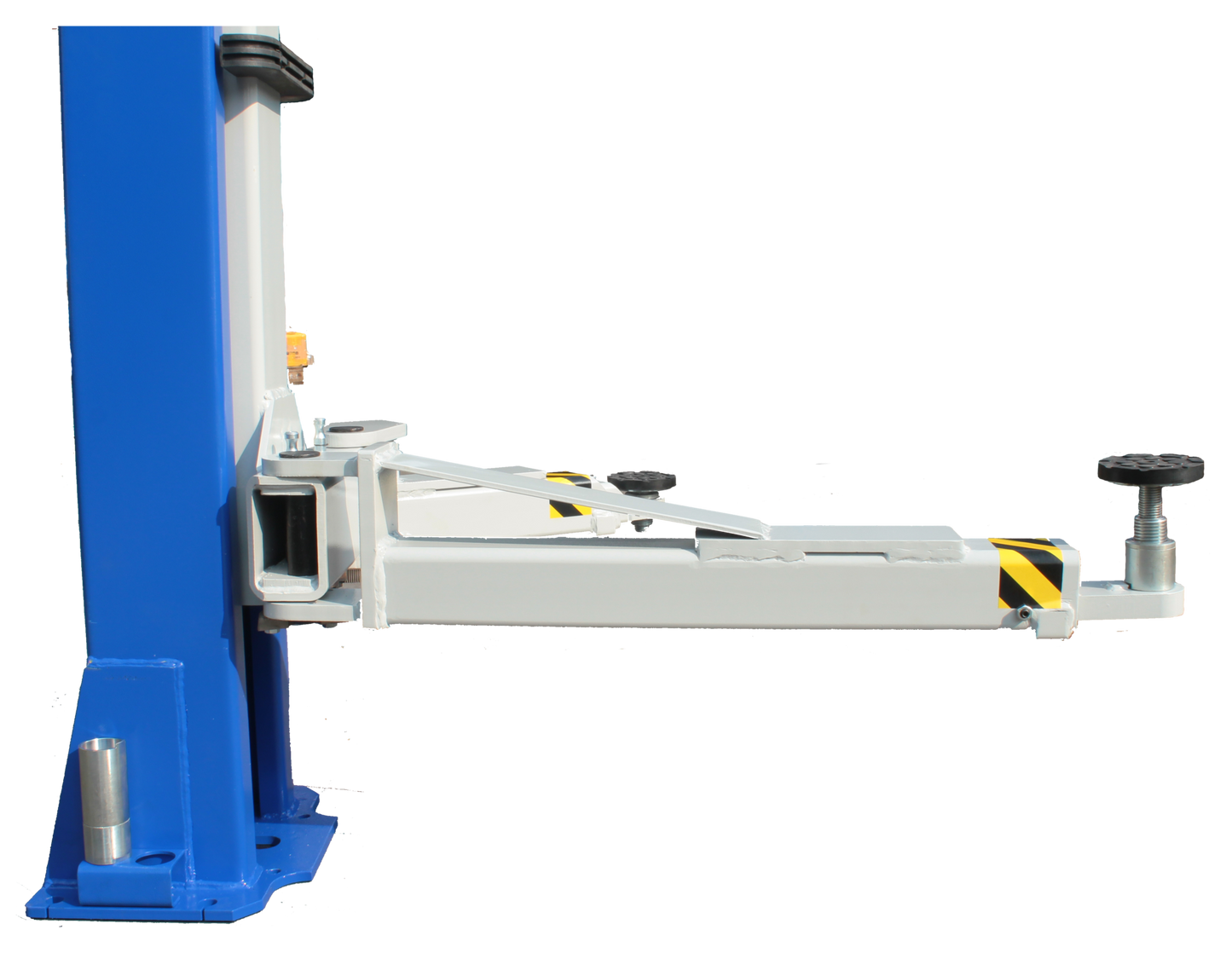

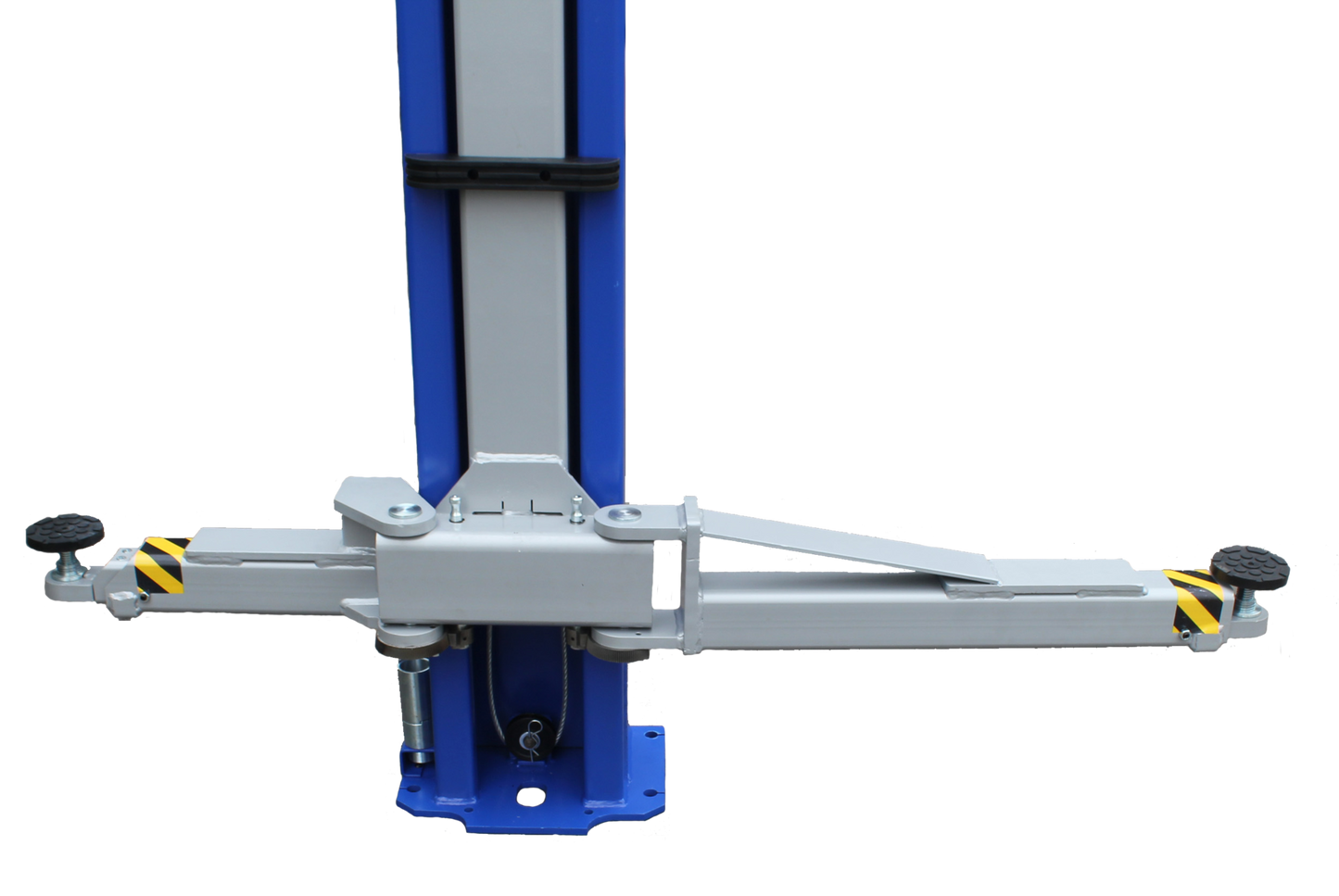

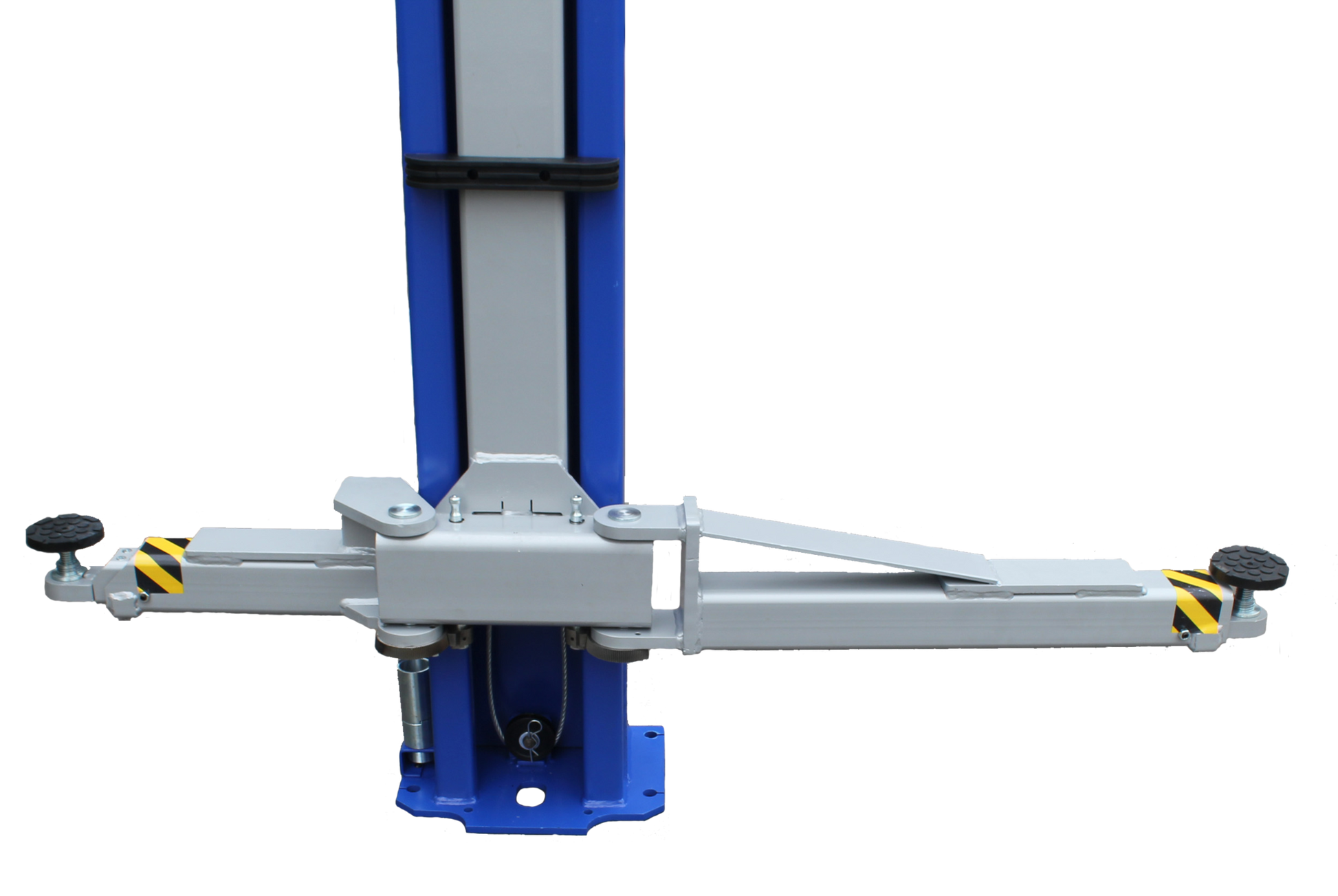

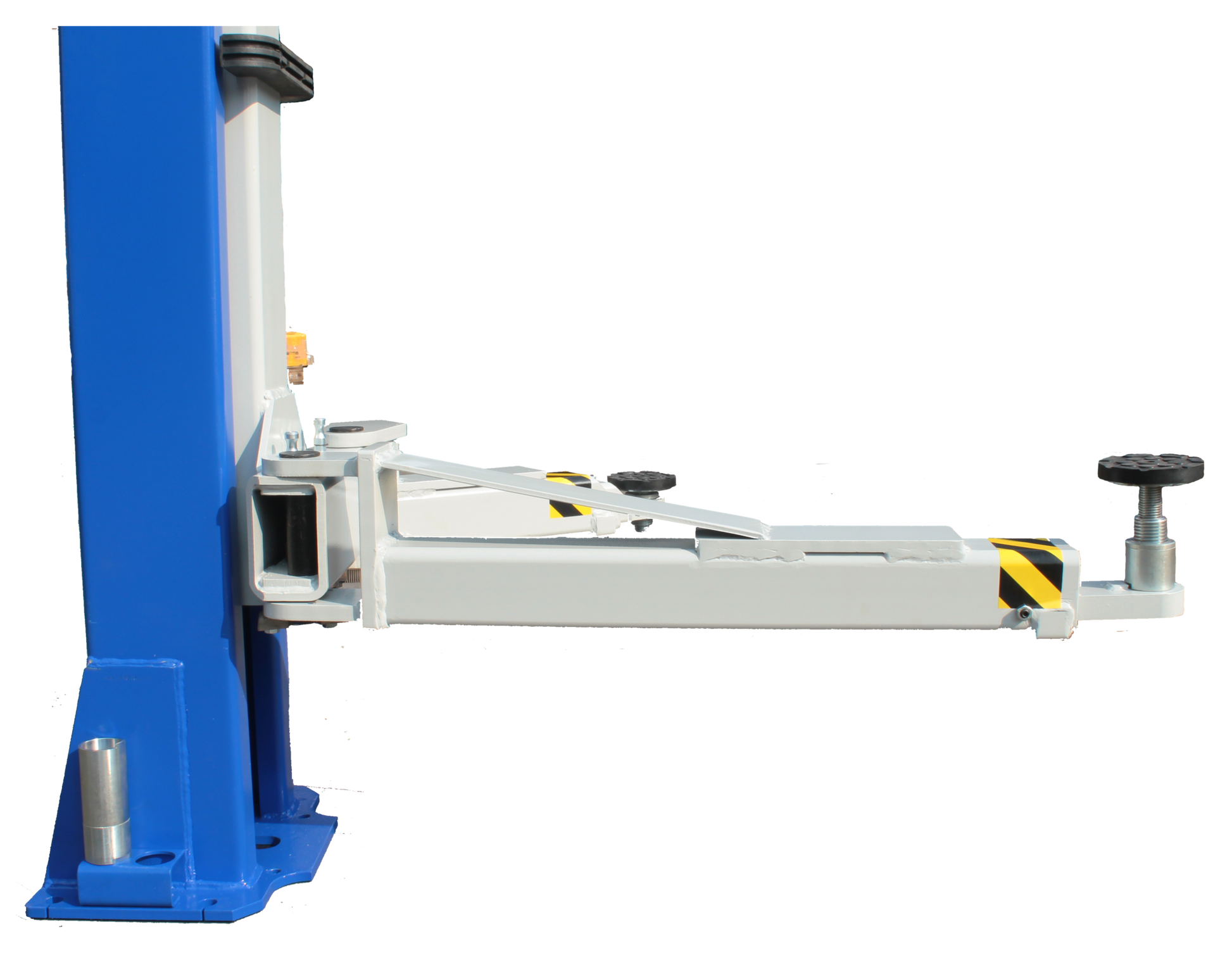

FRONT ARM REACH (MIN/MAX) 23" - 45"
REAR ARM REACH (MIN/MAX) 41" - 57"
ADAPTERS (2 sets of 4 each)  2" and 4"
MAX. LOAD PER ARM (LBS) 2750
SAFETY LOCKING SYSTEM SINGLE POINT
POWER PACK (HP/PH-V-A) 2HP/1PH-220V-20A
CABLE DIAMETER 3/8"
LIFTING SPEED (SECONDS) 50
SHIPPING WEIGHT (LBS) 1705 LBS
 --------------------  --------------------
CONCRETE SPEC  3000 PSI / 4.25" Thickness
ANCHOR BOLTS  (3/4" X 5-1/2") 3.25" EMBEDMENT / 7" FROM EDGE
NON-DETERGENT HYDRAULIC OIL  SAE10 / AW32

OPTIONS / ACCESSORIES CRADLE ADAPTERS (TP11K-DX-SPNCA)

11K Lift Manual: Click Here

Local Pick-up (Reidsville, NC):  12' - 16' (Open) trailer required for pick-up.  Enclosed trailers will not be loaded due to risk of damage to loading ramp.

 Shipping / Receiving:  Offloading of the delivery truck is the responsibility of the customer.  A forklift or similar vehicle is required to unload the lift.  Residential delivery is an additional $150 charge by the freight carrier.
