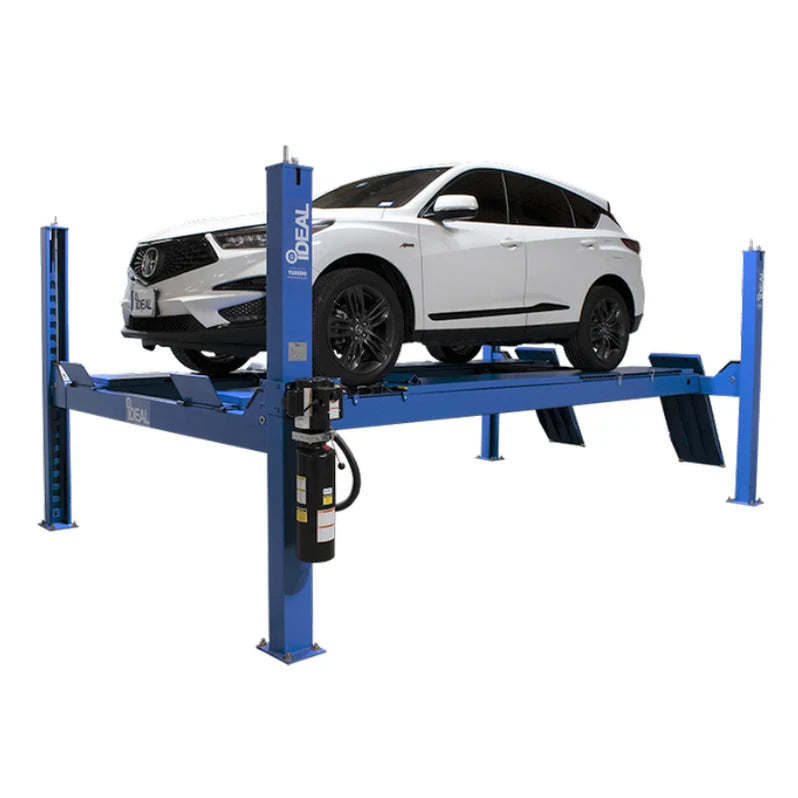

Four-Post 14K Alignment Lift - Cable-Driven (14KAC-X)

Four-Post 14K Alignment Lift - Cable-Driven (14KAC-X)

$10,700.00 USD
$10,700.00 USD
Sale Sold out


 Product Description

  • 14,000 lb Lifting capacity.
  • Closed Front and cable-driven lift.
  • Single point pneumatic safety release mechanism.
  • 20" wide non-skid, diamond plate runways.
  • Powder-coated paint finish.
  • C-channel construction.
  • Hydraulic Operation for minimum maintenance.
  • Three turntable positions for a wide range of vehicles.
  • Rear slip plates mounted on ring roller bearings.
  • Fully adjustable lock stops for easy leveling.
  • Option: 7K or 8K Rolling Air Jack (RAJ-7 / RAJ-8)
Model Number FP14KAC-X
CAPACITY (LBS) 14,000
LIFT CONFIGURATION 4-POST/ALIGNMENT
CEILING HEIGHT MINIMUM 10'
OVERAL LENGTH (W/RAMPS) 252-1/2" (21'-1/2")
OVERALL WIDTH  142" (11' 10")
POST / COLUMN HEIGHT  92-1/2" (7' 8-1/2")
MAX CLEARANCE (UNDER TRACKS) 69-5/8" (5' 9-5/8")
LIFTING HEIGHT 79.5" (6' 7-1/2")
WIDTH BETWEEN POSTS 116.25" (9' 8-1/4")
RAMP WIDTH   20-1/4"
RAMP LENGTH 44"
MAX WHEEL BASE (2-WHEEL) 166.75" (13' 10-3/4")
MAX WHEEL BASE (4-WHEEL) 103" / 157"
SAFETY LOCK   SINGLE POINT (PNEUMATIC)
POWER PACK (HP/PH-V-A) 1HP/1PH-220V-20A
CABLE DIAMETER 7/16"
SHIPPING WEIGHT (LBS) 3810
Optional BRIDGE JACK  RAJ-7K or RAJ-8K
CONCRETE SPEC (Thickness) 4.25"
CONCRETE SPEC (Anchors) 3.25" Min. Penetration & 7" from any edge
HYDRAULIC OIL  AW32

FP14KAC-X Flier: Click Here

FP14KAC-X Manual: Click Here

Local Pick-up (Reidsville, NC):  12' - 16' (Open) trailer required for pick-up.  Enclosed trailers will not be loaded due to risk of damage to loading ramp.

Shipping / Receiving:  Offloading of the delivery truck is the responsibility of the customer.  A forklift or similar vehicle is required to unload the lift.  Residential delivery is an additional $150 charge by the freight carrier.
